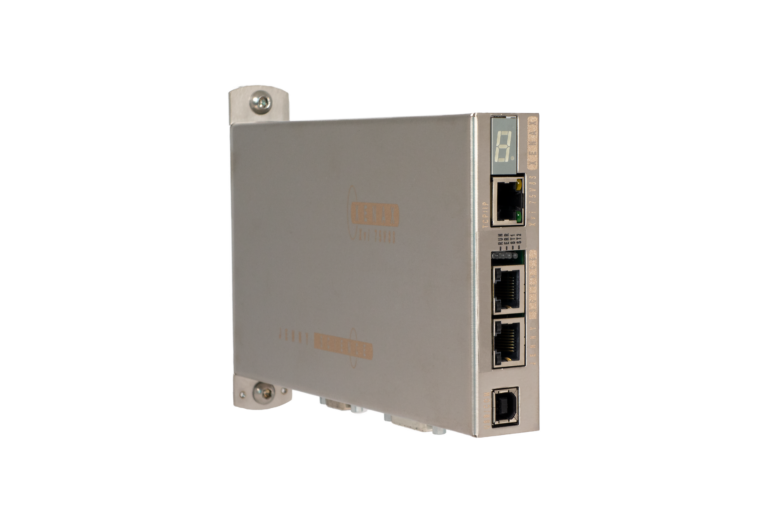

XENAX® XVI 75V8S
General:
El XENAX® XVI 75V8S es la nueva versión del modelo XENAX® XVI 75V8.
Incluye todas las funcionalidades del modelo anterior.
Permite realizar mediciones de fuerza más precisas con el amplificador Signateq® y un sensor de fuerza externa.
Especificaciones XENAX® XVI 75V8S
| Power supply voltage U: | 12-75 VDC |
|---|---|
| Nominal current In: | 0-8 A |
| Peak power Ip: | 18 A |
| Motor types: | LINAX®,ELAX®,ROTAX® |
| Temperature monitoring power amplifier: | Shutdown at 80°C |
| Overvoltage monitoring: | > 85 V |
| Undervoltage monitoring: | < 10 V |
| PLC Input: | 8 x 24 V |
| PLC Input BCD: | 4 x 24 V, Binary coded to Program selection |
| PLC Output: | 8 x 24 V, Source 100 mA, Sink 400 mA, Source/Sink |
| Force functions: | Enabled by default |
| SMU Safety Functions: | STO, SS1, SS2, SLS |
| Bus modules | EtherCAT (CoE), POWERLINK (CoP), CANopen, EtherNet/IP, PROFINET (PROFIdrive) |
Comparativa XENAX® XVI 75V8S - XENAX® XVI 75V8
| 75V8 | 75V8S | |
|---|---|---|
| Webbased for WebMotion® | Java | HTML5 |
| Measurement amplifier Signateq® for external force sensor, precise force measurement | – | YES |
| Optimized output stage for minimum space requirement (waste heat), arrangement directly next to each other possible | – | YES |
| Changeover when connecting third-party motors | DIP – Switch | Automaticallly |
| Position detection prepared for absolute encoder | – | YES |
| USB-Interface | – | YES |
| RS-232-interface | YES | Optional |
| Pulse/direction | YES | Optional |
| Second encoder | YES | Optional |
| Case | Aluminium | Chromium Steel |
| Weight | 515 g | 840 g |
